Data file transfer（The Personal Genome Analysis division）

caution

The Archaea tools server for the Personal Genome Analysis Division is currently being prepared.

In addition to commonly used protocols such as SCP and SFTP, the NIG supercomputer also supports Aspera and Archaea tools, which are optimized for large-scale data transfers over long distances.

info

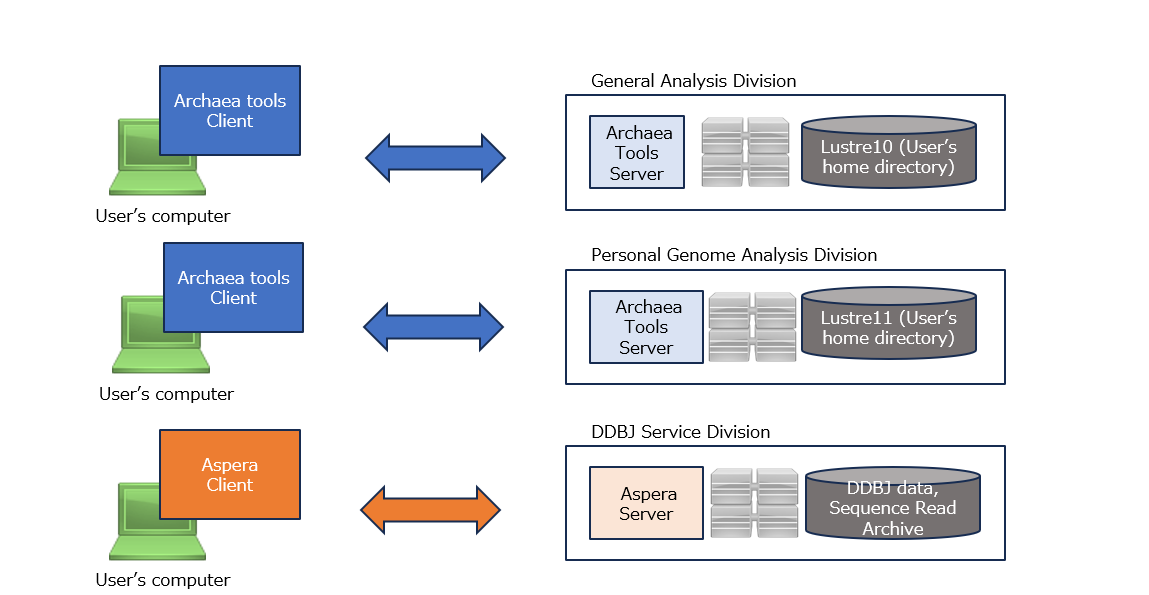

  • Aspera can be used to download data from sources such as NCBI, EBI, and DDBJ to the NIG supercomputer or to users’ personal computers. The total transfer bandwidth is limited to 10 Gbps across the entire NIG supercomputer.
  • Archaea tools are available for transferring data between the user’s home directory on the supercomputer and their personal computer. There is no bandwidth limitation due to licensing.

The NIG supercomputer is currently connected to SINET6 at 100 Gbps. Using Archaea tools allows users to take full advantage of the NIG supercomputer’s high-speed network.

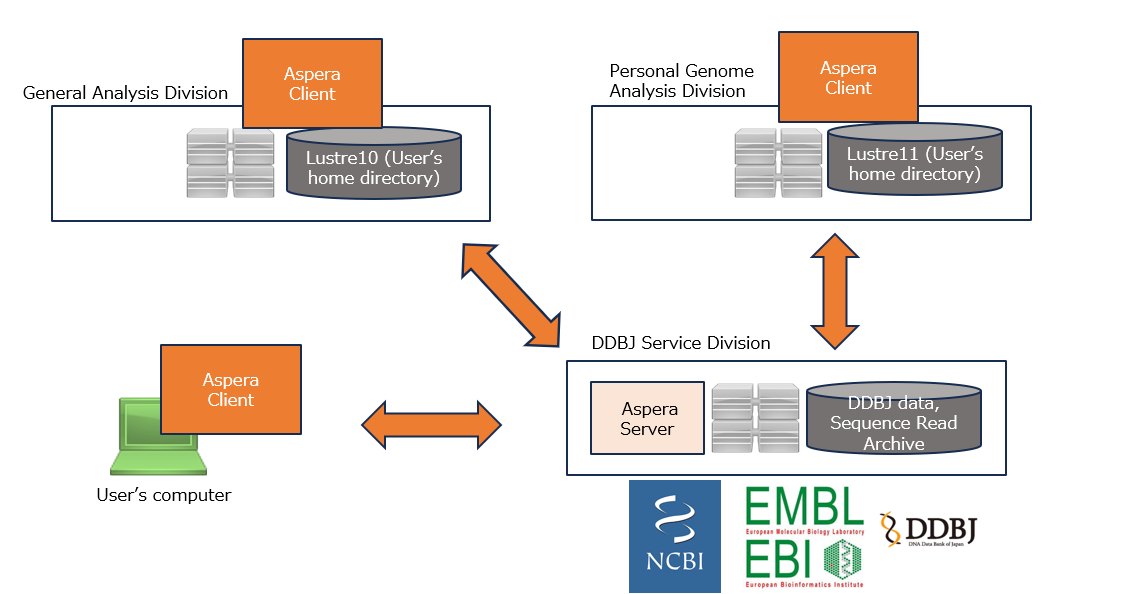

Since Aspera Server is not installed in the general analysis division and the personal genome analysis division, users cannot upload or download data via Aspera from their computers. If you need to transfer data from your computer to those division, please use Archaea Tools.

If you install ascp (Aspera client) in the general analysis division and the individual genome area, you will be able to upload and download data via Aspera from DDBJ, NCBI, and EBI.

How to Use Aspera​

Aspera is a commercial software solution designed for efficient transfer of large files.
It is particularly effective over long distances, with minimal degradation in transfer speed.
When properly tuned, Aspera can achieve speeds close to the theoretical bandwidth limits.

On the NIG supercomputer, an Aspera server with a total bandwidth cap of 10 Gbps is available.
(Note: The overall bandwidth of the NIG network is 100 Gbps.)

For details on how to use Aspera, please refer to:
System Architecture > Software > How to use Aspera client

How to transfer files using SSH protocol (scp, sftp)​

You can transfer files using scp, sftp, etc. to the gateway server (gwa.ddbj.nig.ac.jp) of the personal genome analysis division.

Example on Linux and Mac:

In this state, to scp the your_file.txt file in the current directory to the NIG supercomputer, execute the following command.

you is the account name of the NIG supercomputer.

scp your_file.txt you@gw.ddbj.nig.ac.jp:/home/you

Example on Windows (PowerShell):

  1. At first, start PowerShell. Then, by default, PowerShell starts with your home directory in Windows as the current directory ("youwin" is your Windows user name). Execute the following command to check that the SSH private key is in the following location. In this case, the SSH private key is the id_rsa file.
PS C:\Users\youwin> ls .ssh


    Directory: C:\Users\youwin\.ssh


Mode                 LastWriteTime         Length Name
----                 -------------         ------ ----
-a----        2023/11/28     16:18            160 config
-a----        2022/11/01     16:33           1766 id_rsa
-a----        2024/01/22     12:44           4885 known_hosts
-a----        2024/01/22     12:41           5453 known_hosts.old
  1. In this state, to scp the your_file.txt file in the download folder to the NIG supercomputer, execute the following command.

you is the account name of the NIG supercomputer.

PS C:\Users\youwin> scp .\Downloads\your_file.txt
you@gwa.ddbj.nig.ac.jp:/home/you

How to transfer files using Archaea tools(formerly HCPtools)​

Refer to How to use Archaea tools(formerly HCPtools).
